SPECIFICATIONS
Alternator: Stamford/Marathon/Mecc atle/Leroy-somer
Brand Name: Sutech
Diesel engine: With ISUZE engine
Frequency: 50/60 Hz
Fuel tank capacity: 8 Hours Working
Governor: Mechanical
Key words: Janpan ISUZU generator 60kva
Manufacturer: Sutech Power
Model Number: depend
Noise: 68-72dB
Noise level: 70dBA@7m(no Load)
Package: Wooden Case or pallet
Place of Origin: Jiangsu, China
Rated Current: depend
Rated Power: 60kva
Rated Voltage: 110V-600V
Speed: 1500/1800 rpm
powered by ISUZU diesel motor leroy somer alternator 60kva dynamo generator set
Open type
If you have no require for the noise level or nobody around when generator running.We suggest you cost-effective open type

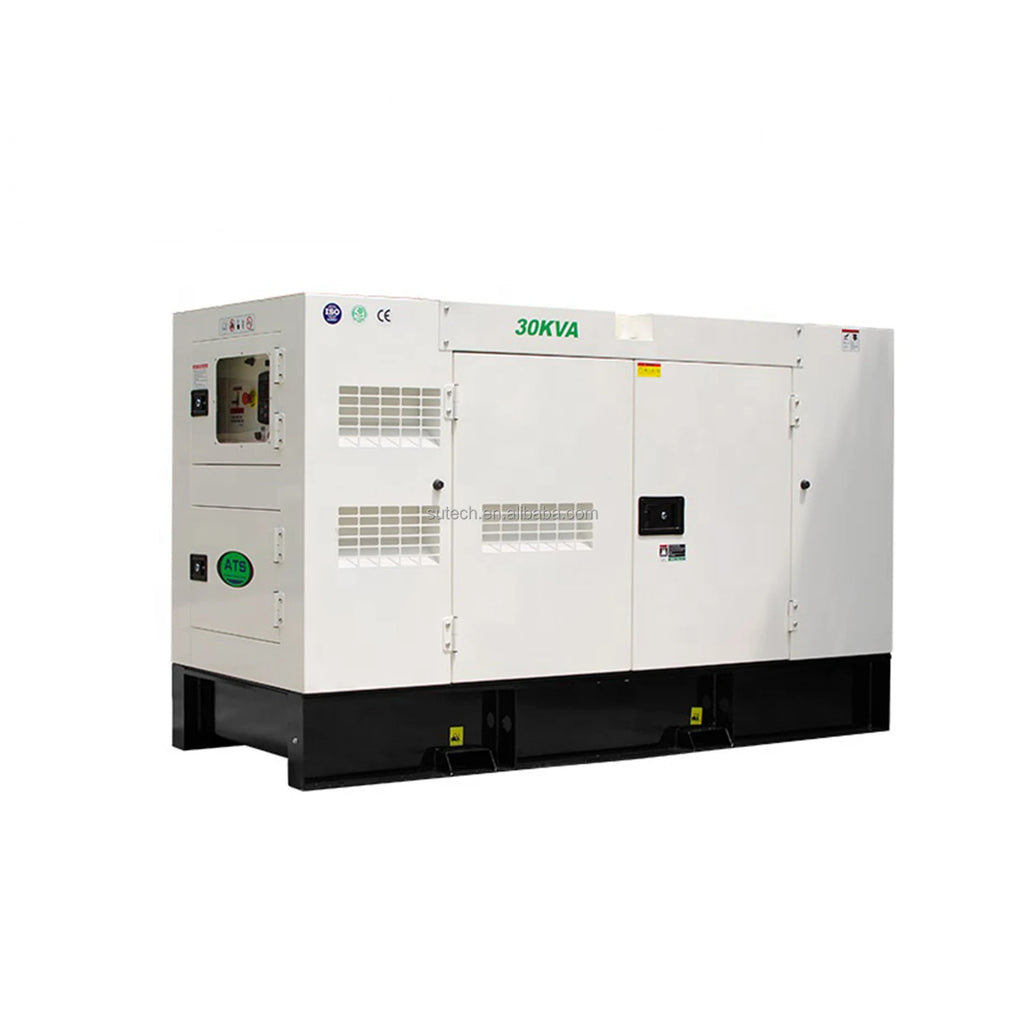

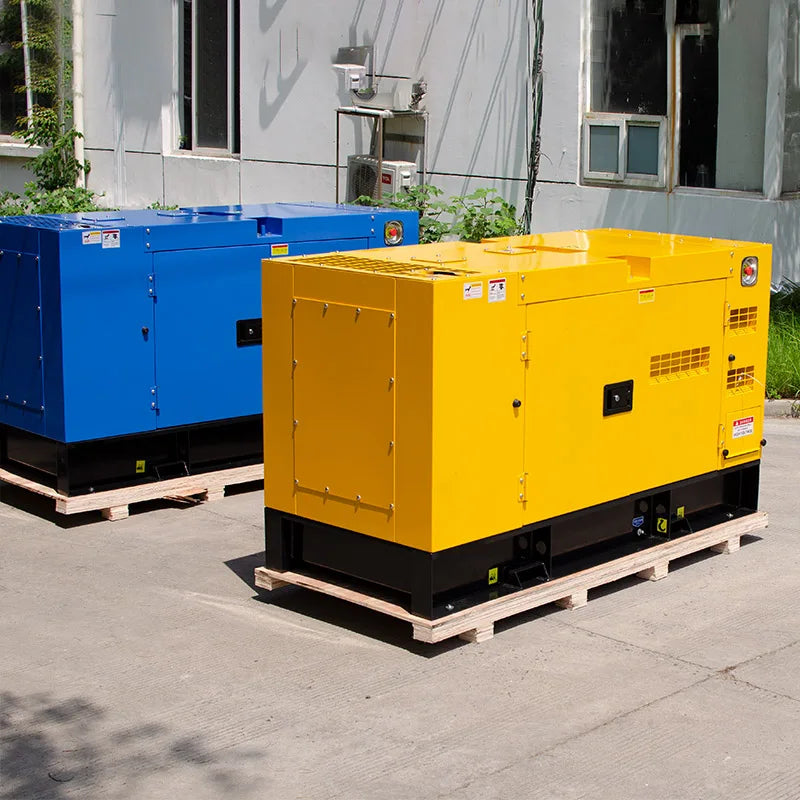

Silent type
The silent canopy is made of Electro-galvanized solid steel.With good performance of Anti-rust.It can reduce the noise to level 65-75 db(A)@7M

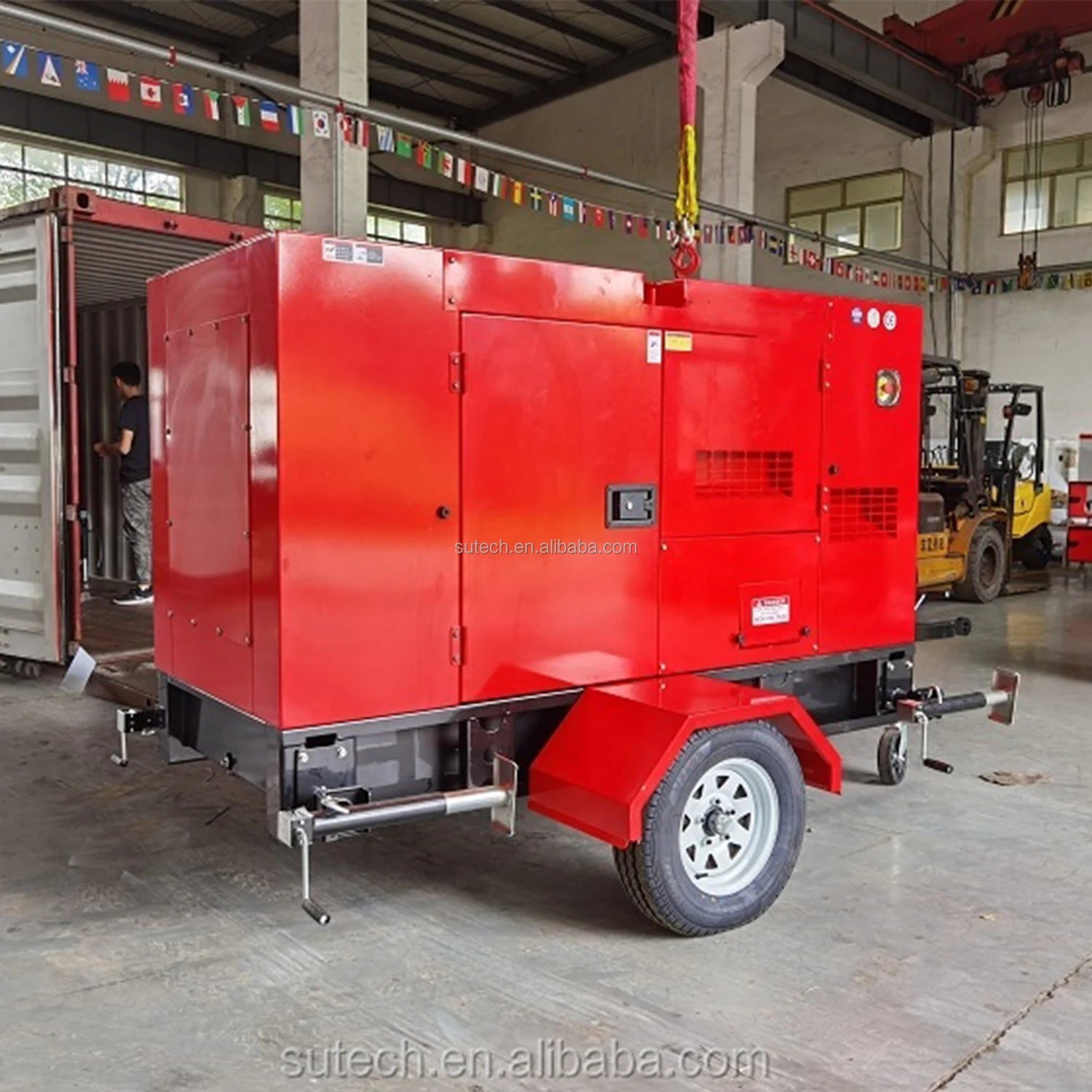

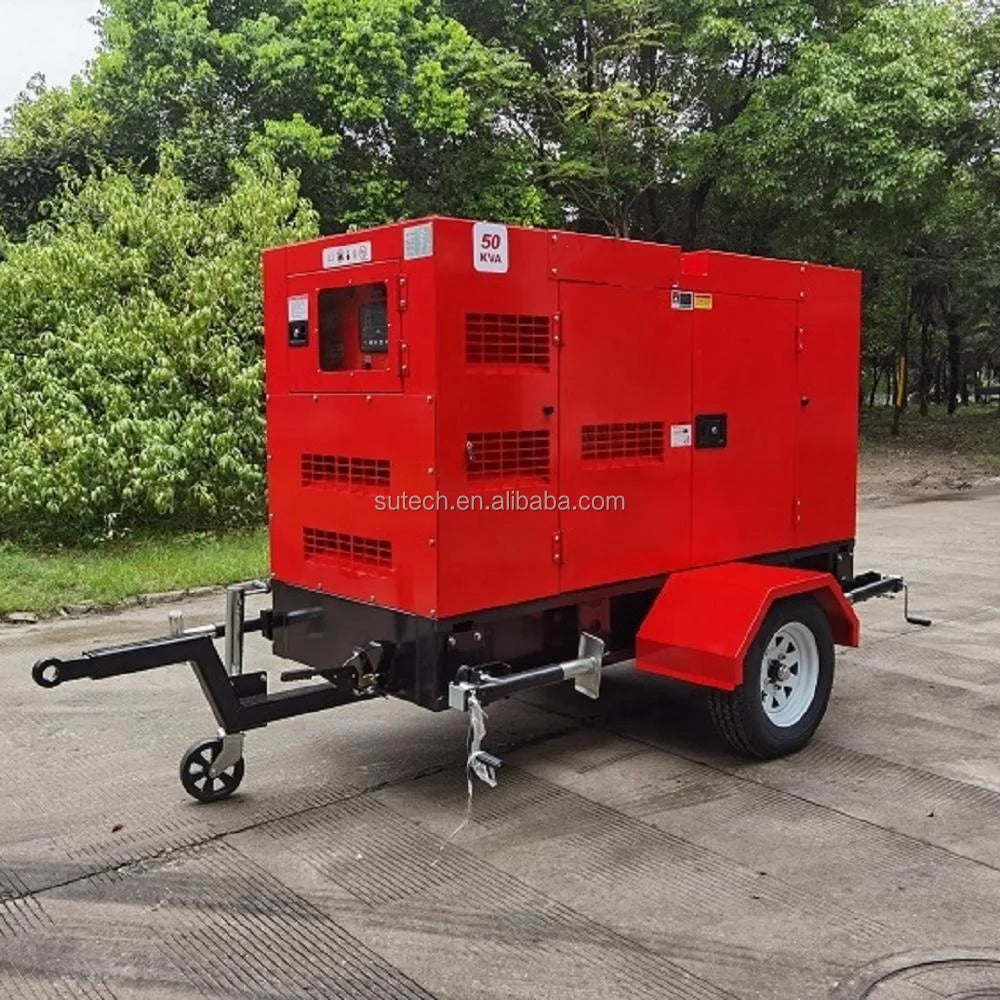

Trailer type
The mobile type is equipped with silent canopy and heavy duty movable trailer.The best solutions for your flexible power demand.
ISUZU engine Parameters
|
Tomato&Potato |
Engine model |
JE493ZDBE-01 |
Number of Cylinders |
4 Cylinders in line |
Cycle |
4 Stroke |
Speed governor |
Electronic |
Bore×Stroke |
108mm x 125mm |
Prime power |
46KW at 1800rpm |
Steady speed droop |
≤1% |
100% Prime power fuel Consumption |
210g/kw.h |
Alternator Parameters
|
Tomato&Potato |
Alternator brand |
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power |
50kw |
Frequency/speed |
60HZ/1800RPM |
Exciter type |
Brushless |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation Grade |
H |
Protection Grade |
IP23 |
Phase |
Three phases |
Controller Panel
|
Tomato&Potato |
Brand |
Deepsea/ComAp/SmartGen |
|
LCD text display, alarm indication |
|
Multiple display languages |
|
Customizable power-up text |
|
Internal PLC editor |
|
Protections disable feature |
|
PC USB communications |
|
Data logging facility |
Easy Operation(one button start before 4 steps preparation)
Add 0# diesel |
Add oil CD15W-40 /above |
Add coolant or water |
Connect to the load |
Taizhou sutech power machinery co.,Ltd
We are diesel generator factory since year 2008 and authorized OEM for cummins perkins stamford deepsea and so on.
Any needs in diesel generator from power 8kva-3000kva.please freely contact me by email:sales002@sutechgenerator.com or Mobile/Whatsapp/Wechat:
+86 153 6561 2391
*24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.
Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.
* In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.
Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.
* Lower noise level is important.
Sutech power generators are made to be environment friendly with low emission and lower noise level
* Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with
load transfer in case of city supply on or off
Q:What do you need to know for fast communication and quotation?
A: It would be highly appreciated if you can provide details of your power capacity,voltage and frequency
Q: What about the lead time?
A: 7-15 workdays, depending on the brand of diesel engine and parts availability.
Q: What is your payment terms?
A:We accept T/T,L/C, and Alibaba trade assurance credit payment.
Q: How can you guarantee the quality?
A: Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure.
Q:What about your warranty?
A: We will warrant our diesel generator for 1000 hours or 1 year which comes first
